| サイズ | d | D | L | シリンダー型式 |
| 1/2” | 10 | 25.5 | 75 | AT52 |
| 3/4” | 17 | 50.5 | 100 | AT52 |
| 1” | 22 | 50.5 | 120 | AT52 |
| 1 1/4” | 28 | 50.5 | 130 | AT52 |
| 1 1/2” | 35 | 50.5 | 140 | AT52 |
| 1 3/4” | 42 | 64 | 150 | AT63 |
| 2” | 47.5 | 64 | 164 | AT63 |
| 2 1/4” | 53 | 77.5 | 164 | AT75 |
| 2 1/2” | 60 | 77.5 | 190 | AT75 |
| 3” | 67 | 91 | 210 | AT83 |
| 3 1/2” | 86 | 106 | 230 | AT83 |
| 4” | 100 | 119 | 260 | AT83 |
|
|

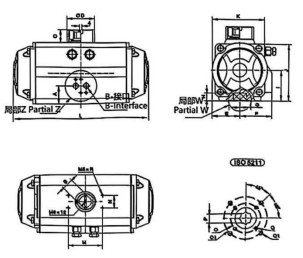

モデル | WH050D/S | WH063D/S | WH075D/S | WH083D/S | WH0105D/S | WH0125D/S | WH0140D/S | WH160D/S | WH180D/S | WH200D/S | WH240D/S | WH265D/S |
| サイズ（mm） | L | 140.5 | 158.5 | 210.5 | 247.5 | 268.5 | 345 | 408.5 | 437.5 | 487 | 543 | 621 | 684 |
| J | 69 | 85 | 102 | 115 | 127 | 157 | 177 | 196 | 220.5 | 245 | 298.5 | 330 | |
| E | 29 | 36 | 42.5 | 49.5 | 56 | 69.5 | 80 | 88 | 99 | 110 | 131 | 163.5 | |
| F | 41.5 | 47 | 52 | 56.8 | 67 | 82 | 91.5 | 99 | 105 | 112 | 131 | 166 | |
| S | 11 | 11 | 19 | 19 | 19 | 27 | 27 | 27 | 42 | 42 | 42 | 42 | |
| I | 34.5 | 42.5 | 51 | 57.5 | 63.5 | 78.5 | 88.5 | 98 | 111.5 | 122 | 150.5 | 165 | |
| 備考 | P | 9 | 11 | 17 | 17 | 22 | 27 | 27 | 27 | 27 | 27 | 36 | 36 |
